Sample Preliminary Obstacle Evaluation Report

A downloadable Clear Path report for a temporary crane screening at KMGM / Montgomery Regional (Dannelly Field). The sample uses the production all-runway report flow so each evaluated runway-end context appears in the PDF.

Download Sample Report View Full Sample Report Open Guided Demo

First page preview of the Clear Path sample preliminary obstacle evaluation report.

Planning-use limitations

Understand the sample before relying on it

SAMPLE / NOT FOR OPERATIONAL USE. This public example is a reproducible preliminary screening report. It is not FAA, DoD, airport sponsor, engineering, surveying, legal, or construction approval.

References to FAA, DoD, UFC, Part 77, airport criteria, or source documents identify evaluation inputs only. They do not imply endorsement, sponsorship, authorization, or official status by any agency, command, military unit, airport sponsor, or airport authority.

AirportKMGMMontgomery Regional (Dannelly Field)

ScenarioTemporary construction craneKMGM Air Traffic Control Tower Renovation - Temporary Crane Screening

Runway contexts410/28 ends 10 and 28; 03/21 ends 03 and 21

Sample resultViolationCivil Part 77 Horizontal Surface penetration: 119.00 ft

What the sample shows

All-runway aggregate reporting with one section for every evaluated runway-end context.
KMGM runway geometry, object coordinates, object elevation, and Part 77 criteria source traceability.
Plan-view and 3D engineering graphics generated from the same report data used by the evaluator.
Calculation rows showing allowable elevation, object top elevation, clearance, and penetration.
Known limitations and non-certification language that should remain attached when a report is shared.

PDF preview

Representative report pages

Select any page to inspect it at a larger size. The downloadable PDF contains all runway sections, source references, limitations, and non-certification text.

Download Complete 21-Page Report

Cover page for the Clear Path sample preliminary obstacle evaluation report showing KMGM all-runway scope. — Page 1Report cover and scope

Executive summary page showing the violation result and Civil Part 77 Horizontal Surface penetration summary. — Page 2Executive result summary

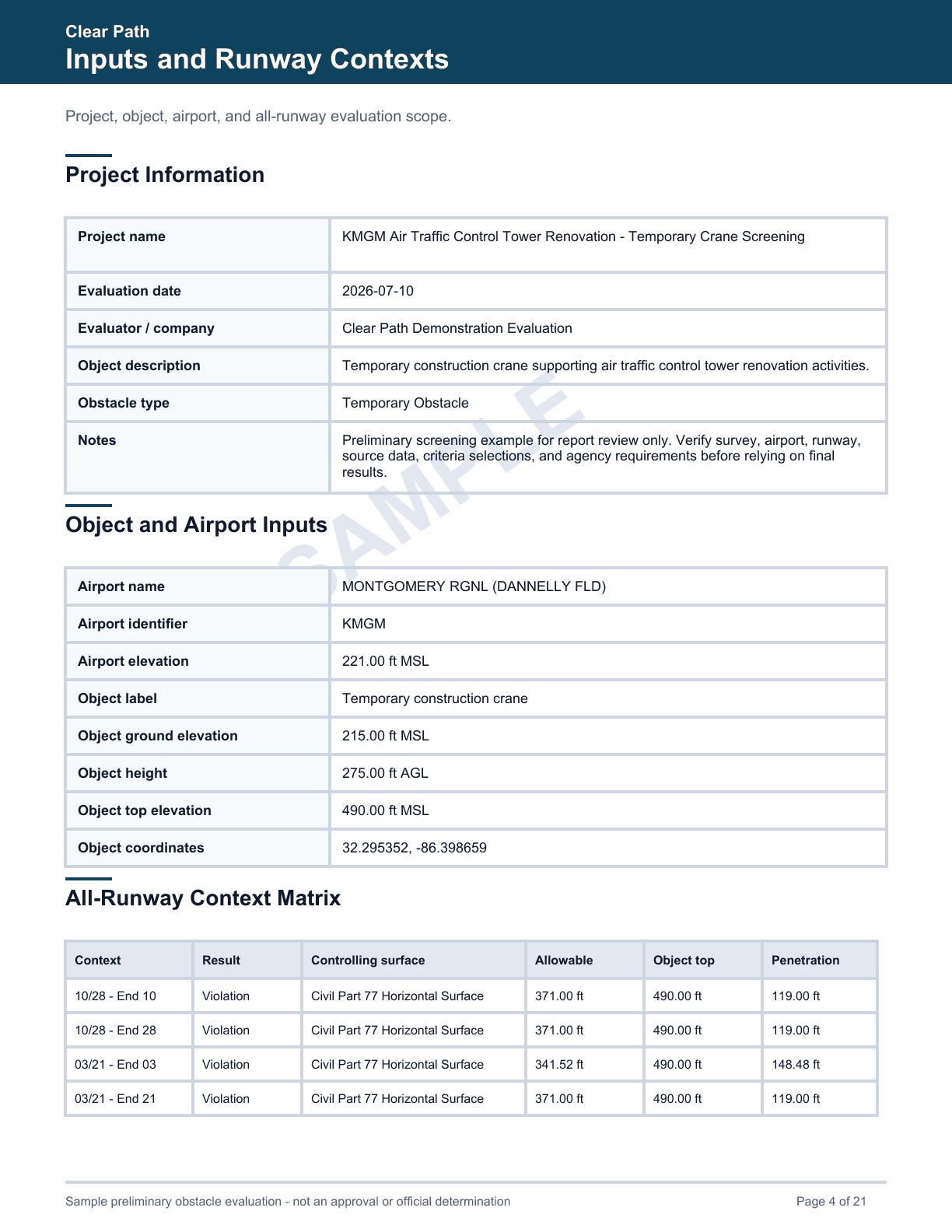

Inputs page showing the KMGM temporary crane object and all four runway-end evaluation contexts. — Page 4All-runway context matrix

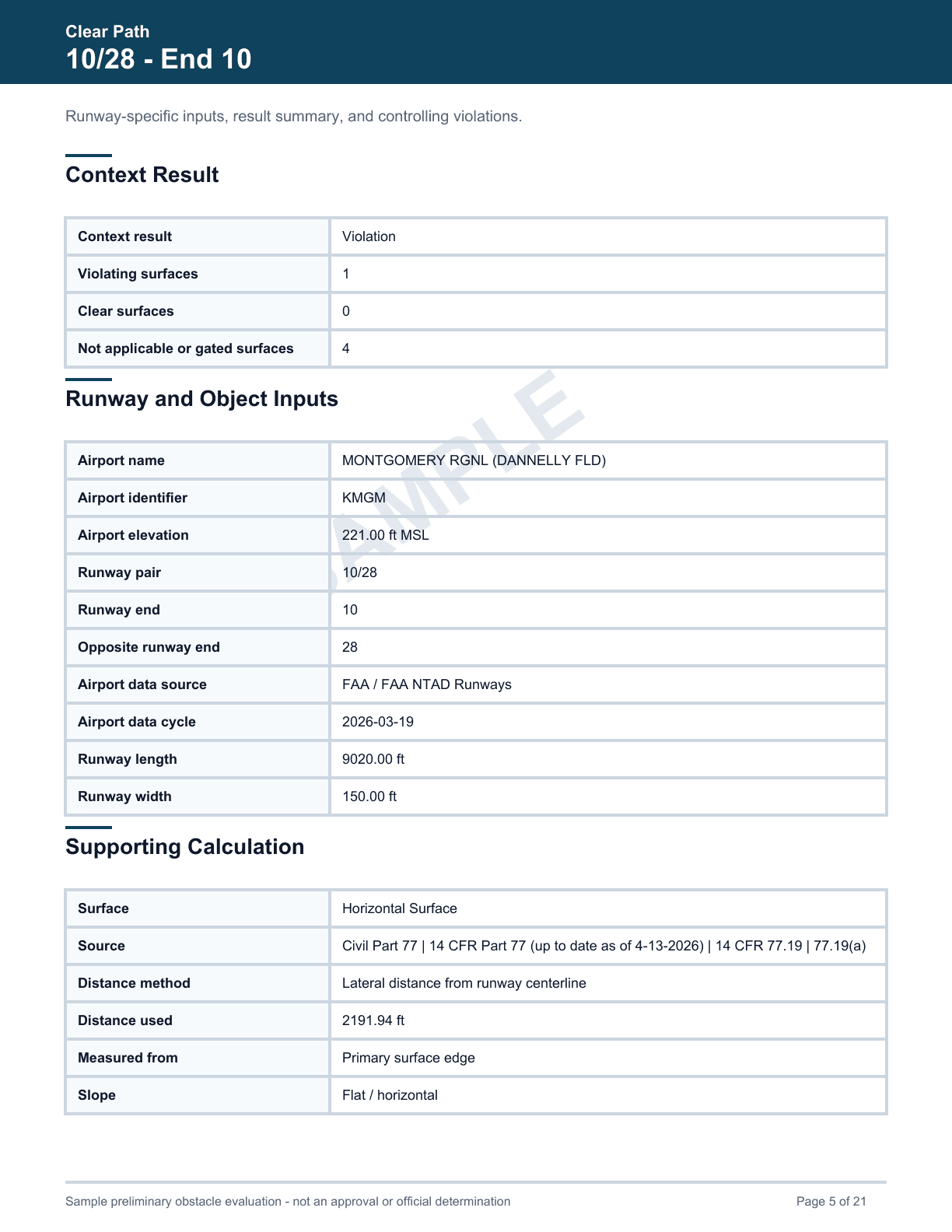

Runway 10/28 end 10 detail page showing result rows and supporting Civil Part 77 calculation values. — Page 5Runway-specific calculation detail

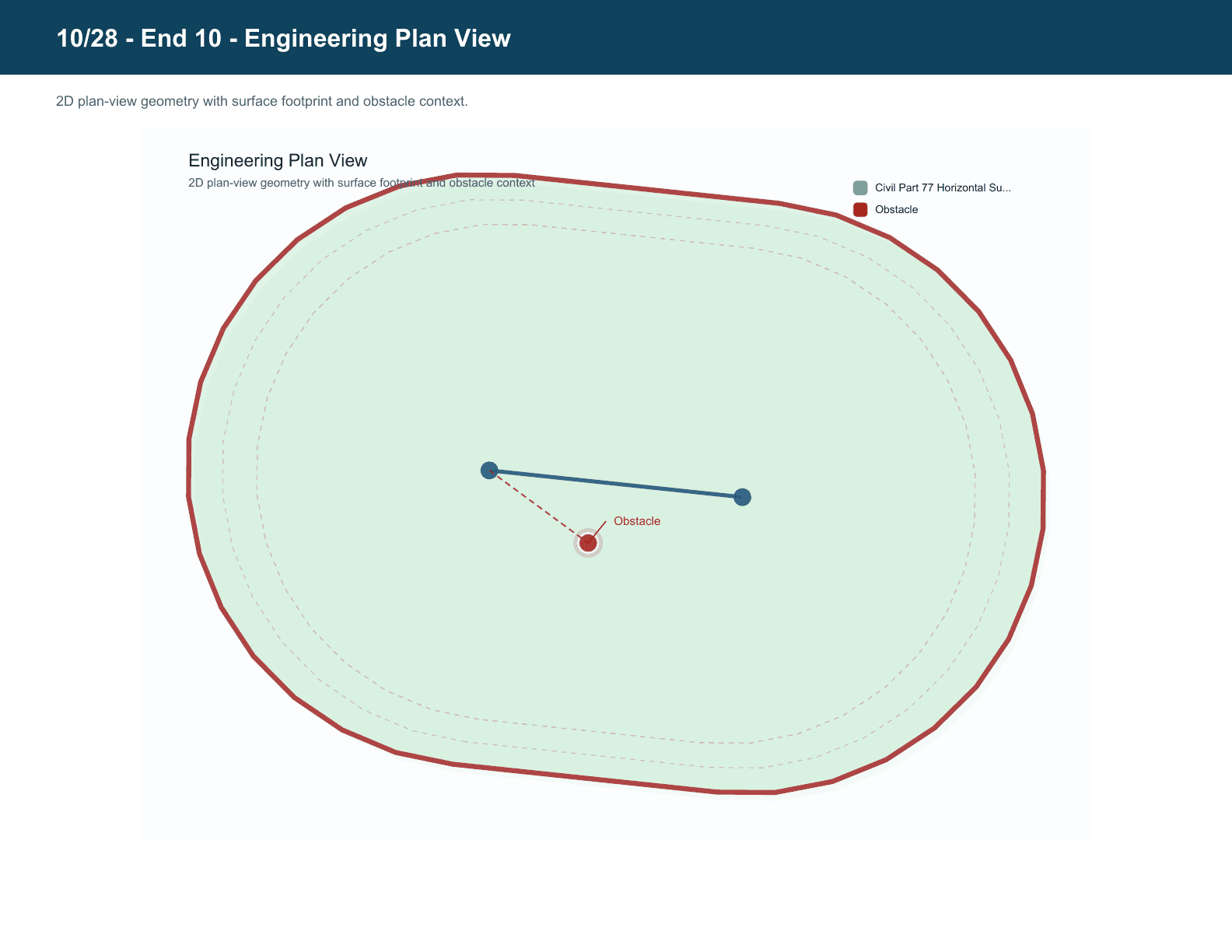

Engineering plan view for KMGM runway 10/28 end 10 with obstacle marker and evaluated surface footprint. — Page 7Engineering plan view

3D engineering view showing runway, obstacle, and Civil Part 77 horizontal surface relationship. — Page 83D engineering view

Support and interpretation

For questions about report structure or workflow, contact support@airspaceevaluator.com. Include the PDF, generated timestamp, airport, runway context, object coordinates, app version v0.1.2, and criteria profile. Clear Path support can explain workflow and report structure, but does not issue approvals, certifications, or official determinations.
